Technical feature:

Ø  Oilfield heavy duty skid mounted, can be designed as trailer mounted;

Ø  Engine can be Natural gas engine, diesel engine & Ex-proof motor;

Ø  Instrument system is PLC or Murphy/Altronic local control, easy and full function control and protection, may also be required by the user to data remote transmission, auto-running and no need 24 hours monitor;

Ø  Loading ,unloading & trouble shooting can be manual/auto, according to client request;

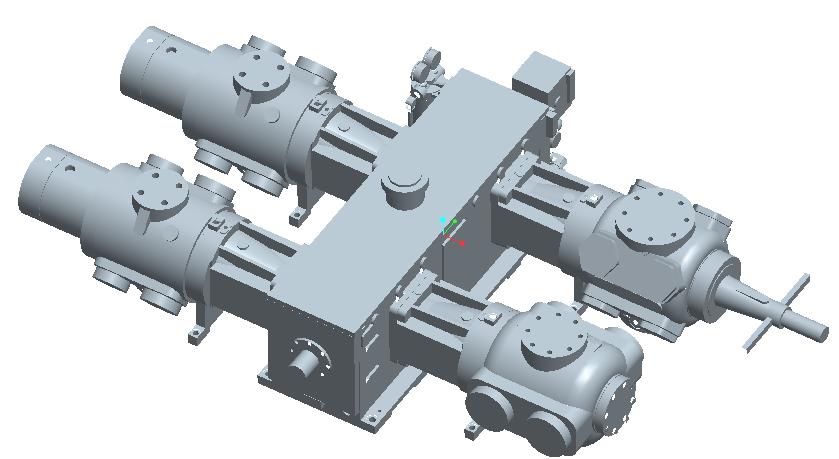

Ø  horizontal symmetrical balanced design, can be one or more stage;

Ø  Designing following API-618 & api-11P standard, meet oilfield clients requirement;

Ø  compressor cylinder is air-cooled design, no any water cooling trouble;

Ø  High strength crankcase, crankshaft, connecting rod and piston rod design to meet the oil and gas fields on the compressor long-term, continuous full-load operation requirements;

Ø  Compressor valve using specialized Hoerbiger design, valve loss is small, high efficiency;

Ø  Compressor piston ring, support ring and seal packing by the CPI (compressor products internation) specifically designed to meet the design requirements of the cylinder;

Ø  The lubrication system uses a combination of splash lubrication and forced lubrication, depending on the different lubrication requirements;

Ø  Speed ​​adjustment, in the range of 600 ~ 1800rpm normal operation;

Calculation software specially for model selection, high efficiency, precision and accuracy, and ready to meet the user conditions & requirement;

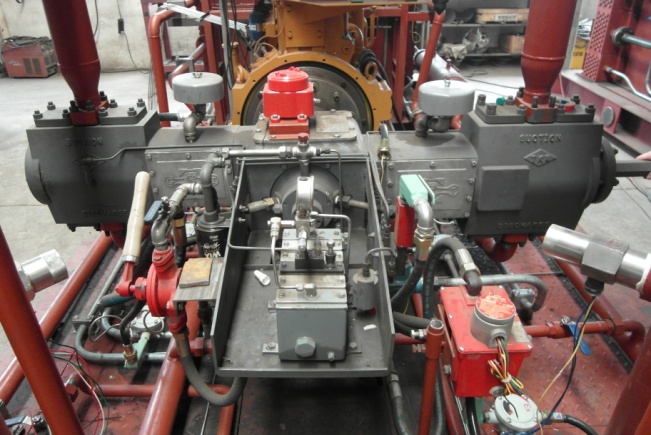

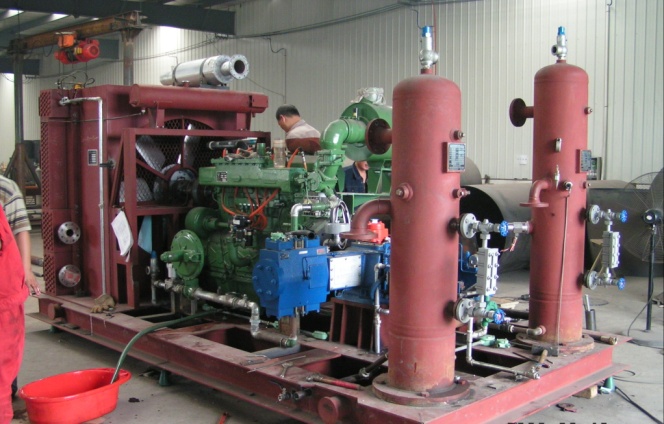

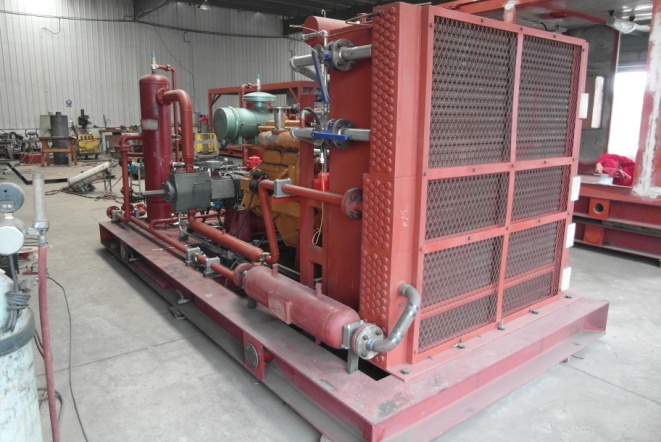

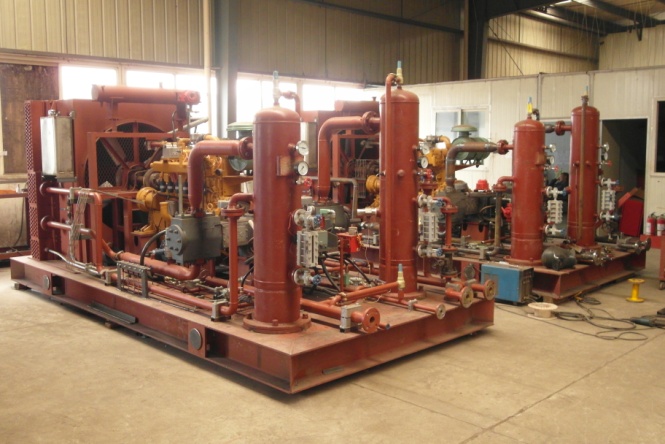

Manufacturing in factory:

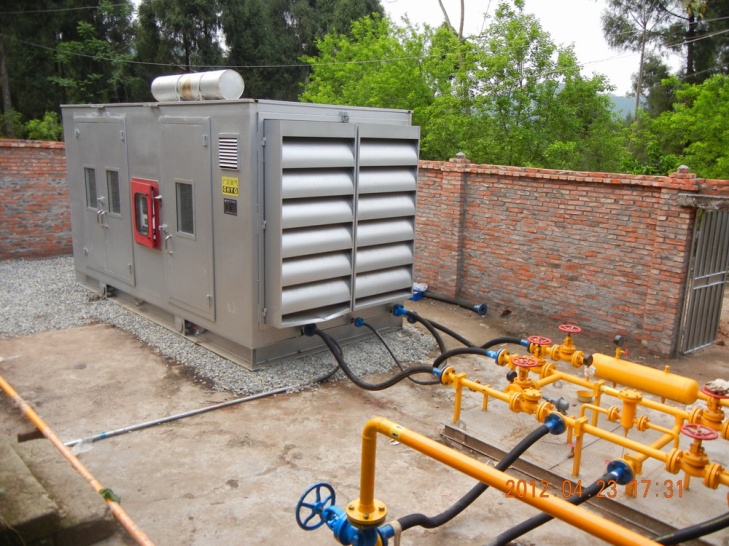

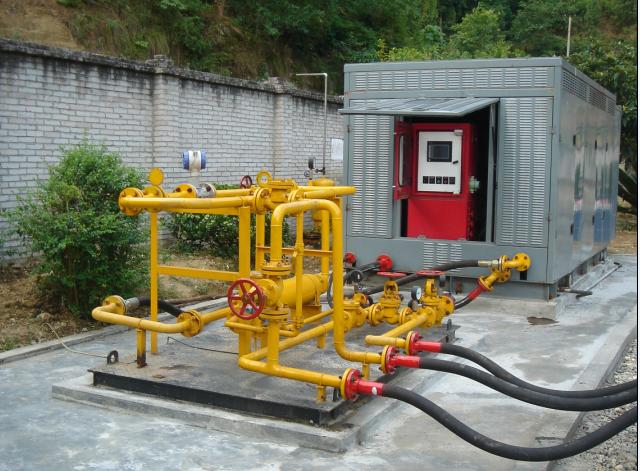

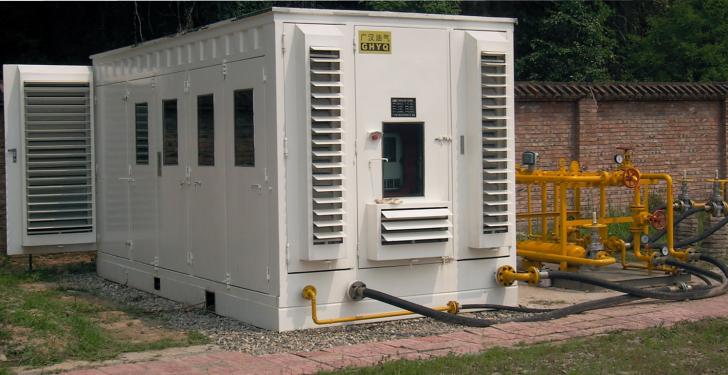

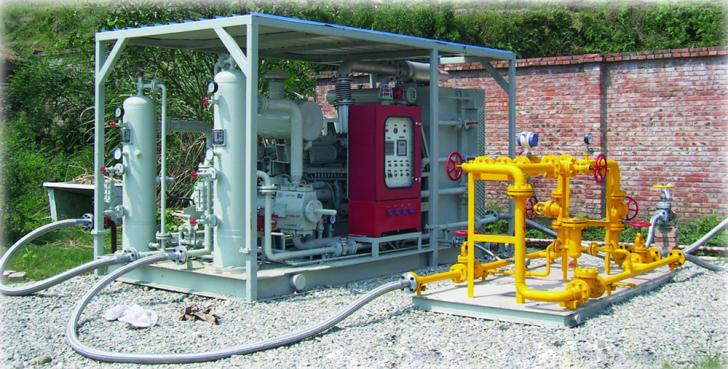

Working in oilfield
