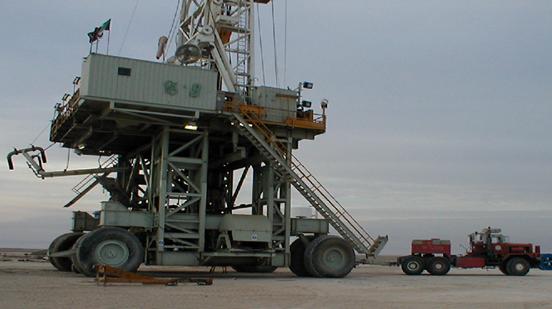

Moving system parameters:

Max. Moving speed:                                    1km/h

Max. Continue moving distance:                    5km

Total moving weight:                                    420mt – 480mt

Tire model:                                                  36.00-r51 desert tire

Tire qty.:                                                     16 ea

Single tire load capacity:                              51mt

Air pressure of tire:                                       0.5mpa

Min. Ground clearance:                                760mm

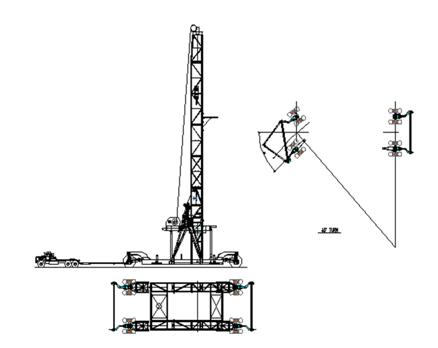

Oversize of moving:                                      31m x 17.7m x 59m

Traction pin:                                                3-1/2” (90#)

With folowing technical description:

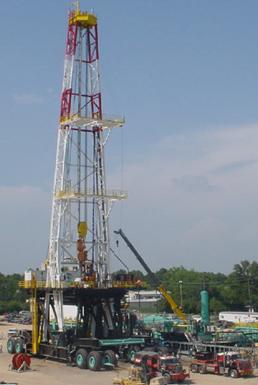

1.          Moving as one piece specially for cluster wells, or the distance of wells are less than 5km.

2.             Mast and substructure spearate moving for the distance of wells are less than 50-100km.

3.      It is possible to be equiped on the existing rigs which have been worked in the oilfield.

model	KB-DJ01
Max.load capacity	400 t
Max.moving speed	10km/h
Environment temperature	-20～55℃

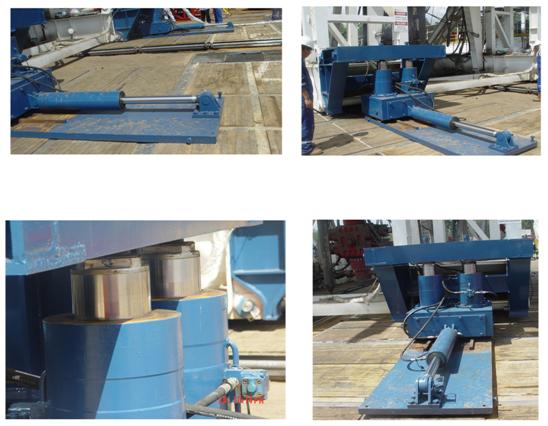

model	KB-DJ02
Rated working pressure	64Mpa
Environment temperature	-20～55℃



model	KB-DJ03
Max.load capacity	300 t
tread	≈7500mm
Max.moving speed	10km/h
Environment temperature	-20～55℃
