MUD PUMP UNITIZATION

Home» Product

We can provide the following transmission type：

a. engine+ Hydro-mechanical transmission case + angle gear box+ belt+ Pump power end

b. engine+ Push plate clutch + angle gear box+ belt+ Pump power end

c.engine + fluid coupling + angle gear box+ belt+ Pump power end

d.engine+ Hydro-mechanical transmission case + transmission shaft + Pump power end

e. engine + fluid coupling + transmission shaft + Pump power end

f. engine+ Air tube clutch + belt+ Pump power end

g. engine+ Air tube clutch + angle gear box+ belt+ Pump power end

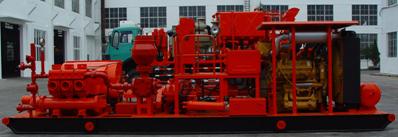

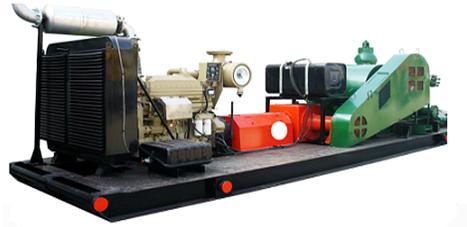

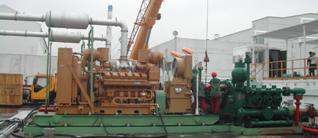

DIESEL ENGINE DRIVE MUD PUMP UNITIZATION

Model	500HP MUD PUMP	800HP MUD PUMP	1000HP MUD PUMP
CAT Diesel engine	CAT C15 (540HP/2100RPM)	CAT3508 (800HP/1300RPM) OR CAT C27 (800HP/2100RPM)	CAT3512 (1025HP/1200RPM)
Other engine	CUMMINS KTA19-C600 (600HP/2100RPM)	CUMMINS QSK38 (920BHP/1200RPM)	JICHAI G12V190PZLG-3 (1090HP/1300RPM)
Transmission type #1	AIR DISC CLUTCH + ANGLE GEAR BOX + BELT	AIR DISC CLUTCH + ANGLE GEAR BOX + BELT	AIR DISC CLUTCH + ANGLE GEAR BOX + BELT
Transmission type #2	HYDRAULIC TORQUE CONVERTOR + CARDAN SHAFT	AIR TUBE CLUTCH + BELT	AIR TUBE CLUTCH + BELT
Transmission type #3	CARDAN SHAFT + 3-SHIFT MECHNICAL GEARBOX + CHAIN BOX	HYDRAULIC TORQUE CONVERTOR + CARDAN SHAFT	HYDRAULIC TORQUE CONVERTOR + CARDAN SHAFT

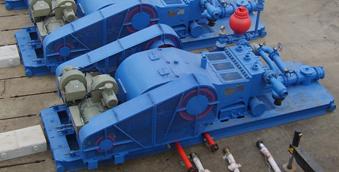

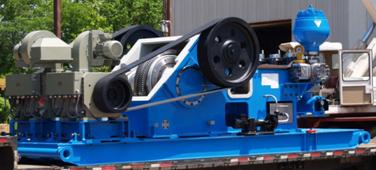

ELECTRIC MOTOR DRIVE MUD PUMP UNITIZATION
