Test Vehicle

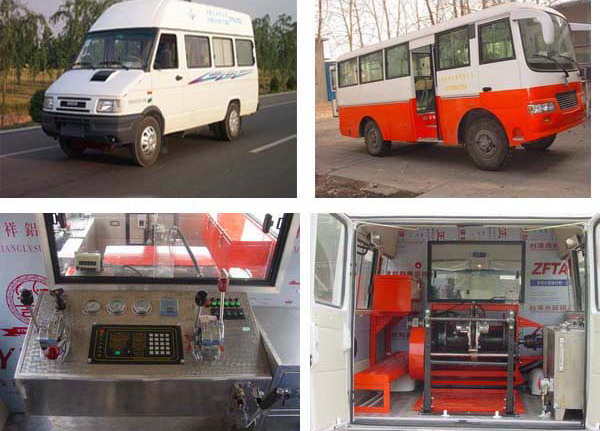

Based on the vehicle chassis, the wireline truck is refitted by adding PTO system, hydraulic system, winch assembly, brake system, hand bodies and other special devices. The truck is mainly used for well testing operation.

The wireline truck includes normal wireline truck, double drum wireline truck and mobile drum wrieline truck.

Optional chassis: Dongfeng EQ6670PT

IVECO NJ6606SFF6

IVECO NJ6683NR6

1: Wireline truck

The maximum lifting speed	6 m/s
Drum Speed Range	0～420 r/min
Test Depth	6000m （φ2.4mm）、7000m （φ3.0mm）
Maximum lifting force	6.47 kN（φ2.4mm）、10 kN（φ3.0mm）

2: double drum wireline truck

Cable Testing Depth	≥4000m （φ3.2mm）
Maximum lifting force of cable	≥10 kN（φ3.2mm）
Testing depth of wire	≥4000 (m)（φ2.4mm）
Maximum lifting force of wire	6.47 kN（φ2.4mm）
The maximum lifting speed	6 m/s
Drum Speed Range	0～420 r/min

3: mobile drum wrieline truck

The maximum lifting speed	6 m/s
Drum Speed Range	0～420 r/min
Test Depth	≥4500m （φ2.8mm）
Maximum lifting force	10 kN（φ2.8mm）
