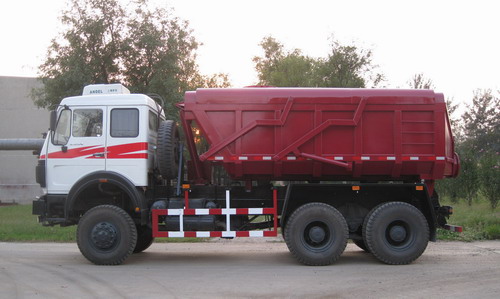

Sand transporting truck

Based on the second-chassis, the sand transporting truck is refitted by adding subframe, cabinet assembly, lifting oil cylinder, opening oil cylinder, etc. With the character of high loading, good applicability, high efficiency and low energy consumption, the truck is mainly suitable for loading and self-unloading bulk freight, such as fracturing sand, earth rock and sand, etc. The truck is widely used for the following trades: downhole special operation, architectural engineering, earth rock project, clean and sanitary.

Optional chassis: shanqi (6×66×4), zhongqi (6×66×4), jiefang (6×46×6), hongyan (6×46×6), beiben (6×66×4).

Tank volume

12 m3

Open width

2800mm

Maximum lifting angle of carriage

52°

Rated working pressure of hydraulic system

16 MPa
