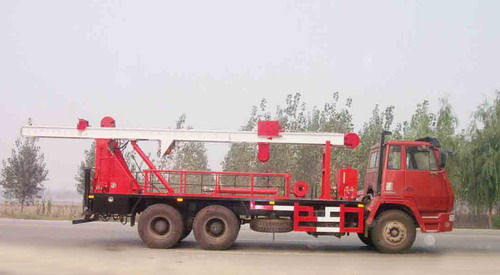

Piling mobile ground　anchor　vehicle

Based on the SHANQI 6×4 chassis, the anchor vehicle is refitted by adding PTO, hydraulic winch, mast, gravity bob, synchronous gripper mechanism, drilling mechanism, pile pulling mechanism, hydraulic system, air system, etc. It is mainly used for oil field to drill anchor pit.

Gravity bob mass （kg）	710
Gravity bob maximum stroke （mm）	6000
Maximum piling length （mm）	2500
Rated pulling pile force （kN）	100
Drilling depth （m）	1.2
