ZJ20

Home» Product

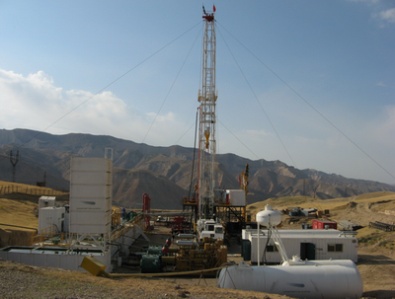

The 2000m trailer mobile drill is trailer chassis drilling equipment. the power system is CAT motor and Allision gear box. The special equipment is made up of derrick, winch, rotate table drive and liquid gas electricity system. Equipped with rig floor and mud system the trailer mobile rig is used for 2000m well.

Item	Parameter
Installed Power	630HP (470KW)
Max.Hook Load	1580kN
Max. Drill String Load	700KN
Drawworks Rated Power	600HP
Transmission	Hydraulic+Mechanical
Drive Mode	12×8
Norminal Drilling Depth (4 1/2"DP)	2000m
Mast Height	35m
Rig Floor Height	4.5m
Wirerope Diameter	Ф29mm
Hydraulic System	14MPa
Pneumatic System	0.8MPa
Travelling System	5×4
Overall Size	20.1×3.05×4.49m (Including Mast) 15.56×3.05×3.1m （Without Mast）
Total Mass	Approximately 58000Kg
