ZJ30

Home» Product

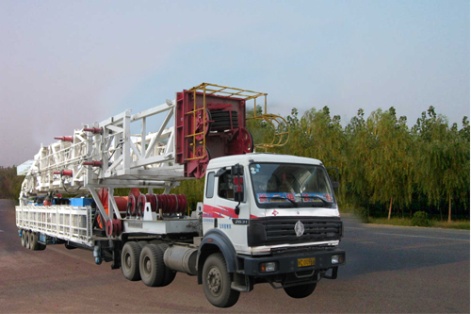

The 3000m trailer mobile drill is trailer chassis drilling equipment. the power system is CAT motor and Allision gear box. The special equipment is made up of derrick, winch, rotate table drive and liquid gas electricity system. Equipped with rig floor and mud system the trailer mobile rig is used for 3000m well.

Item	Parameter
Installed Power	630 HP×2 (470 KW×2)
Max.Hook Load	2250kN
Max. Drill String Load	1150KN
Drawworks Rated Power	1000HP
Drive Mode	14×10
Norminal Drilling Depth (4 1/2"DP)	3000m
Mast Height	38m
Rig Floor Height	6m
Wirerope Diameter	Ф32mm
Hydraulic System	21MPa
Pneumatic System	0.8MPa
Travelling System	6×5
Overall Size	23×3.2×4.8m (Including Mast) 16. 56×3.2×3.2m (Without Mast)
Total Mass	Approximately 85000 kg
