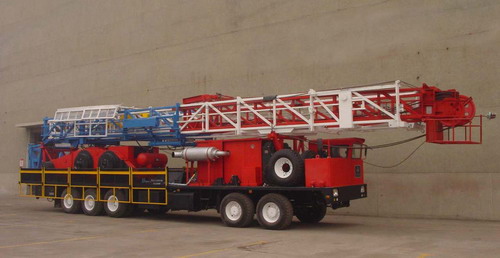

XJ110 Workover rig

XJ110 workover rig is truck-mounted drilling equipment. The chassis is home-made 10×8 special chassis. The power system adopt import CAT engine matching with Allision gear box. The special equipment is made up of derrick, winch, the driving device of rotary table, the control system of hydraulic, air and electric, etc.

Workover depth

5500m  (73mm Tubing)

4500m  (73mm DP)

Maximum load

1125kN

Traveling system

45

Wireline Diameter

Φ26

Engine

CAT c15/540 bhp

Transmission type

ALLISION S5610HR

Derrick

Headroom

32m

Maximum static load

1200kN

Winch

Maximum pull of fastline

180KNSecond layer

Applicable wireline diameter

26mm

Maximum speed

450rpm

Drilling platform

Height

3.5m/4m/4.5Optional

The rotary table model

ZP175
