XJ135 Workover rig

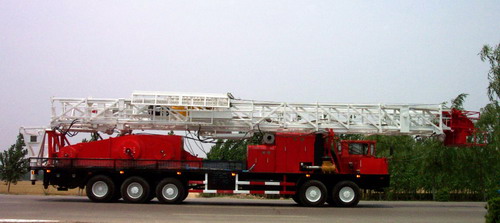

XJ135 workover rig is truck-mounted drilling equipment. The chassis is home-made 10×8 special chassis. The power system adopt import CAT engine matching with Allision gear box. The special equipment is made up of derrick, winch, the driving device of rotary table, the control system of hydraulic, air and electric, etc.

Workover depth

7000m  (73mmTubing)

5800m  (73mm DP)

Maximum load

1350kN

Traveling system

4×5

Wireline Diameter

Φ29

Engine

CAT c18/630 bhp

Transmission type

ALLISION S6610HR

Derrick

Headroom

34m

Maximum static load

1350kN

Winch

Maximum pull of fastline

210KNSecond layer

Applicable wireline diameter

29mm

Maximum speed

450rpm

Drilling platform

Height

4m

The rotary table model

ZP175
