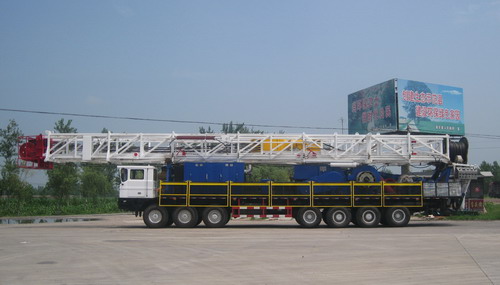

XJ180 Workover rig

XJ180 workover rig is truck-mounted drilling equipment. The chassis is home-made 14×8 special chassis. The power system adopt import CAT engine matching with Allision gear box(two sets, parallel operation). The special equipment is made up of derrick, winch, the driving device of rotary table, the control system of hydraulic, air and electric, etc.

Workover depth

8000m (73mm  DP)

6500m (88.9mm DP)

Maximum load

1800 kN

Traveling system

5×6

Wireline Diameter

Φ32

Engine

CAT c15/540 bhpTwo

Transmission type

ALLISION S5610HRTwo

Derrick

Headroom

38m

Maximum static load

1800kN

Winch

Maximum pull of fastline

280kN

Applicable wireline diameter

32mm

Maximum speed

450rpm

Drilling platform

Height

6m

The rotary table model

ZP275
